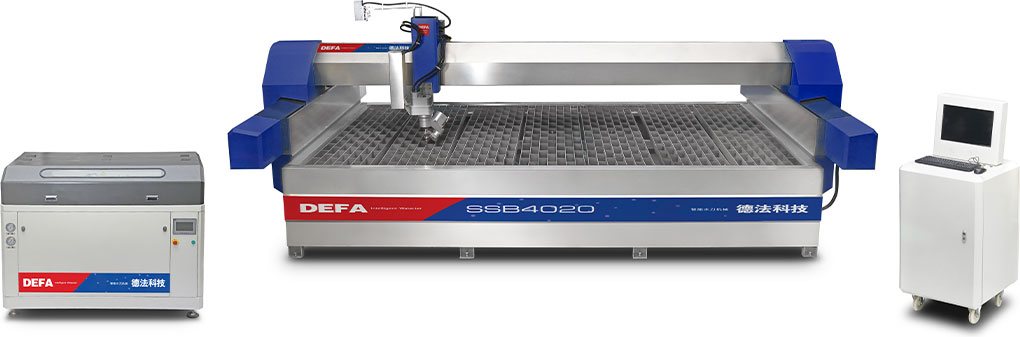

Five axis series
• The operation principle of the Five-axis Rotary Cutting Head is that the cutting head can swing in any direction by adding two rotating shafts which are the rotary axis (A axis) and the deflection axis (B axis)to the original three-axis platform.
• The slope model pattern set and real-time calculation of the cutting track are used in advance in the NC system. The system will make calculation according to the material and thickness of the cut workpiece.
• The cutting head is constantly swung in the process of cutting and completely controlled by the intelligent system. With human-computer interaction technology, our waterjet cutting equipment is capable to complete with the ability of three-dimensional continuous interpolation, which can make the real three-dimensional dynamic cutting.
• Our waterjet cutting equipment can be widely used with cutting of all kinds of workpiece into perfect slope. It can be used not only to correct the cutting slope, but also to cut off the workpiece with a certain slope (such as the groove of welded parts). It also has the functions of machining cone, bevel gear,uniform rotating surface and expanding the application field of waterjet cutting equipment.
Please note: Further notification will not be provided if there is anychanges of equipment specifications, parameters and appearance.
